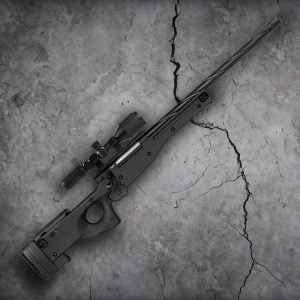

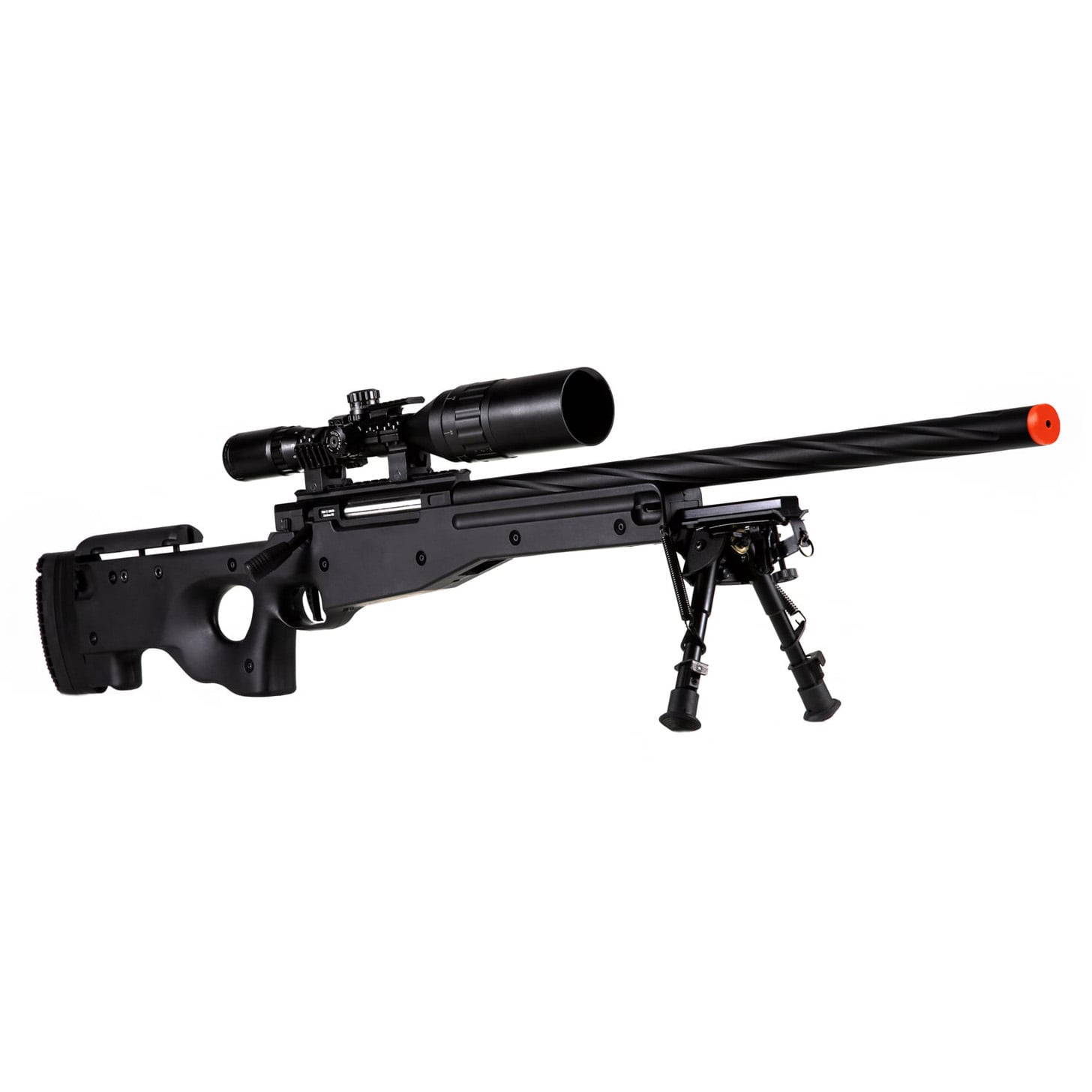

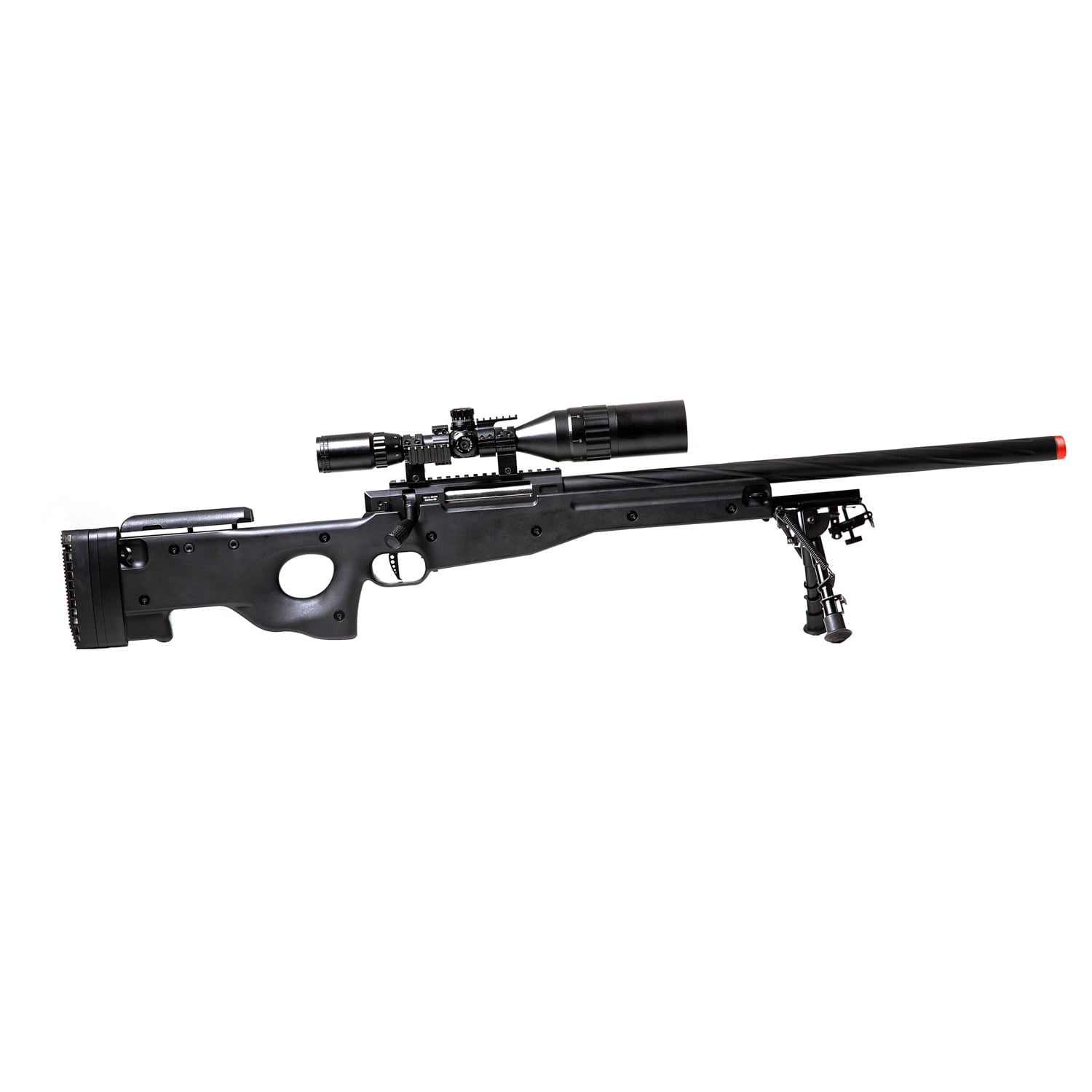

SSG96 Mk1 – Airsoft Sniper Rifle

Pre-installed is a Maple Leaf 70° bucking which provides 100% seal and is able to lift up to 0.5g BBs. In addition to the bucking, a flat pressure arm has been installed which ensures that the rubber is under even pressure and that the BBs don't curve to the side.

In order to ensure a repeatable and consistent trajectory of the BBs, we chose to go with a screw adjustment TDC chamber which keeps the pressure on the bucking even on all sides. The adjustment range of this chamber is infinite so you can set it to your desired trajectory.

The complete cylinder is made of stainless steel. The back is threaded and pinned which provides the most secure connection of the two parts. You won't be able to break it.

One piece from stainless steel. Just like the cylinder, there is no way you will be able to break the spring guide. The diameter of the spring guide is 13mm and follows the NOVRITSCH standard.

The piston combines several material to reap the benefits of each of them. Lightweight aluminium body keeps the weight down. The base of the piston is made of steel to prevent wear and tear when the trigger catches the piston. Finally, rubber cap provides superior air seal and plastic glide rings allow the piston to move fast while stabilizing it in the middle of the cylinder without unnecessary friction.

Steel sears inside of the trigger box can take up to M220 springs. Active retention of the CNC steel spring guide stopper will ensure that the stopper doesn't fall out while shooting. The engagement angle of the piston and the trigger is 90*

To ensure that the inner barrels always points in the exact same direction there is two additional stabilizers built in. One barrel spacer with O-rings on the outside and the inside is installed and also the endcap comes with an o-ring. Your BBs flight path with be consistent and accurate.
