SSQ4 Power Adjustment Set

You can replace the NPAS on the SSQ4 with these rocket valve spacers to fine-tune the power as you want.

Expected Power

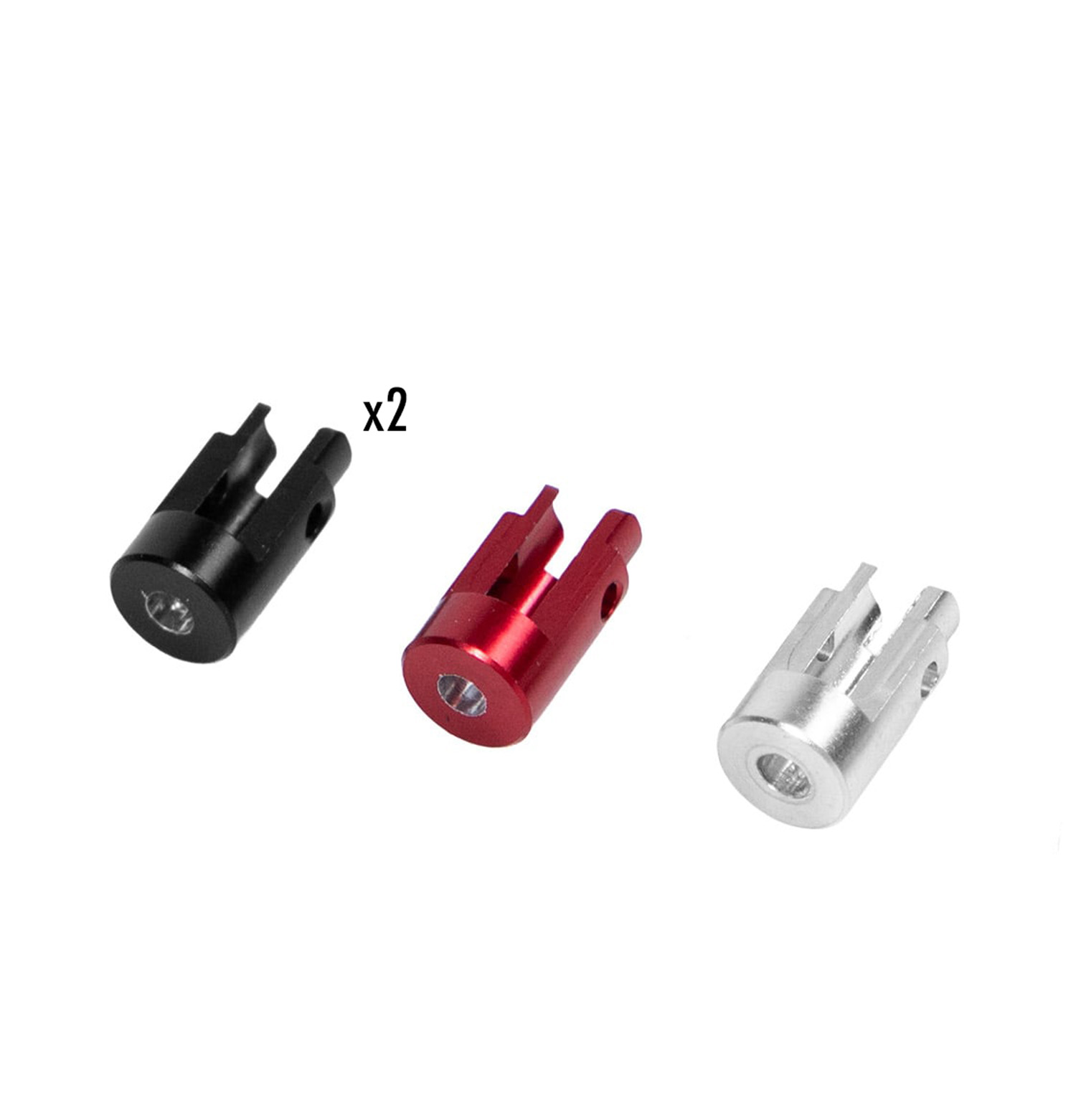

• 2x Black = ~1J Gas/ HPA
• Red = ~1.5J Gas
• Silver = ~1.5J HPA
• NPAS = 1J – 2.5J

Note that power will vary depending on multiple factors. You might need to fine-tune your valve spacers (Shortening to increase the power) to get it to the power level you want. Less is more when it comes to adjusting it.

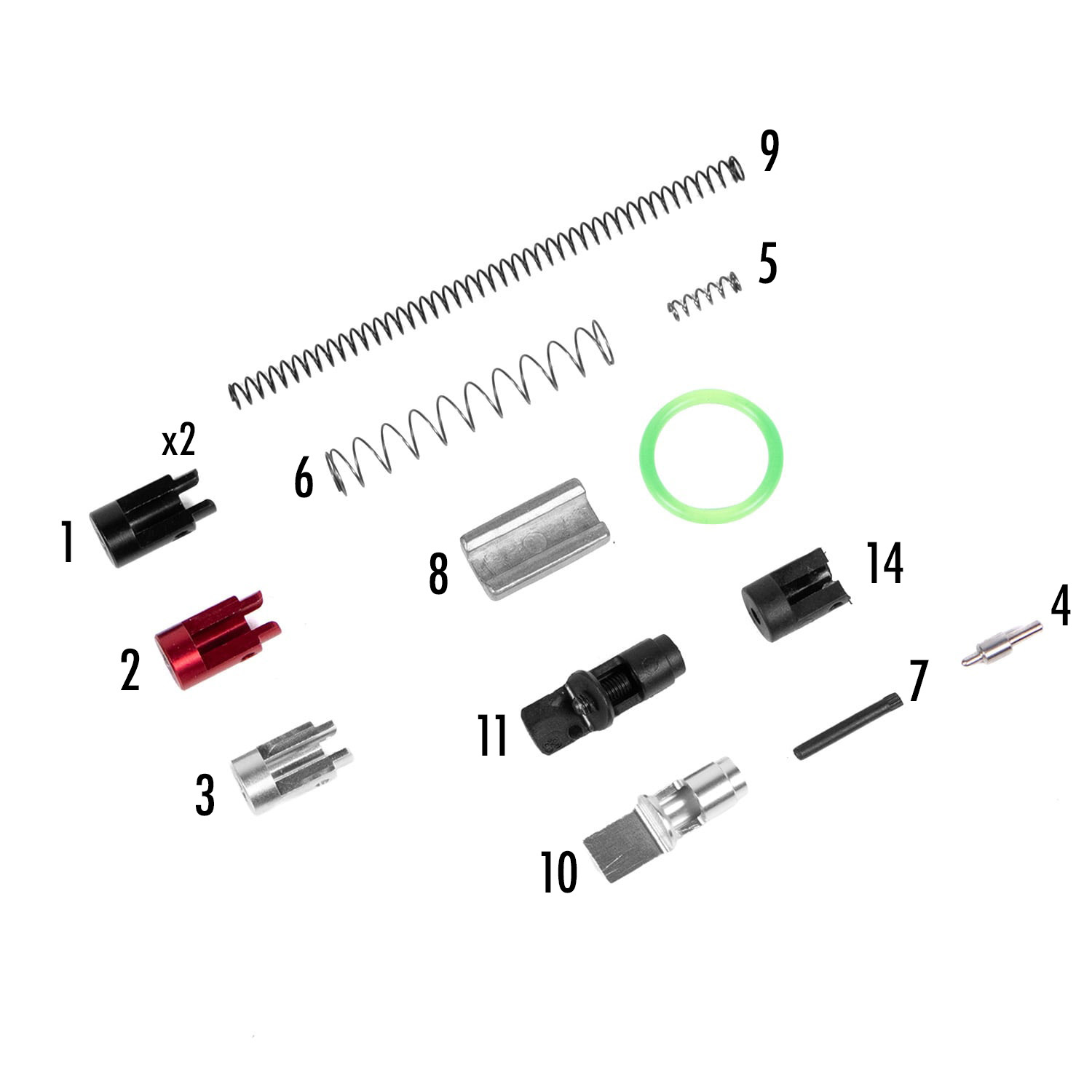

What’s in the box:

1. Rocket valve spacer x2 – 1J gas/ HPA
2. Rocket valve spacer – 1.5J gas
3. Rocket valve spacer – HP HPA
4. Nozzle Return Guide
5. Nozzle Guide Spring
6. Rocket Valve Spring
7. Rocket Valve Spacer Pin
8. Nozzle Stop Block
9. Nozzle Return Spring
10. Metal Rocket Valve
11. NPAS Rocket Valve with Screw
12. NPAS Rocket Valve Spacer
